You can access the installed queries of the server with the queries endpoint. If e.g. the would be a query with id 0, you could access the query with: http://localhost:8888/queries/0

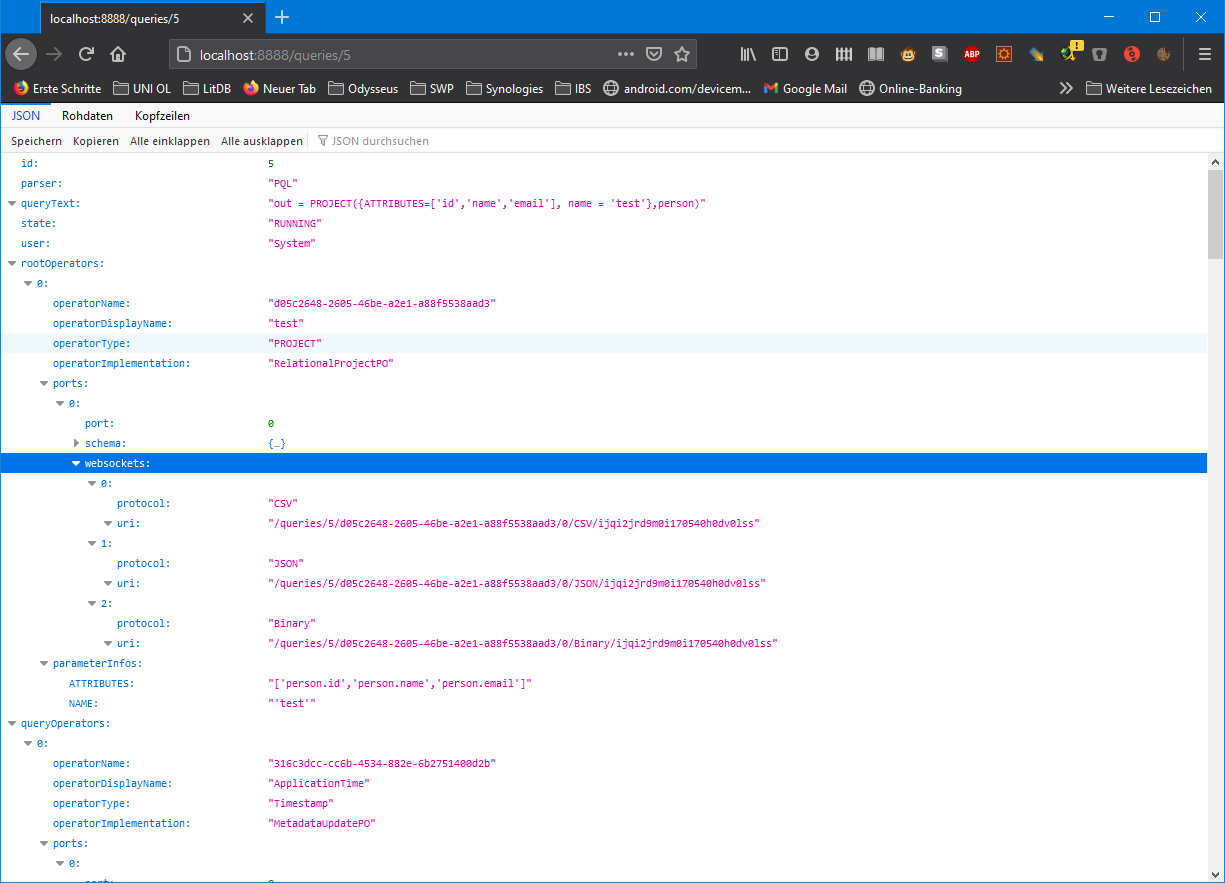

The result will look similar to the following:

The important part for accessing the results can be found in the websockets section. For each root operator (i.e. the sink of a plan) you could find information how to access the results via a web socket connection.

Different kinds of data can be access. E.g. in der example above, the endpoint "/queries/5/d05c2648-2605-46be-a2e1-a88f5538aad3/0/CSV/ijqi2jrd9m0i170540h0dv0lss" will delivers the results of the query via the CSV protocol handler. (Binary will be the Odysseus Protocol Handler)

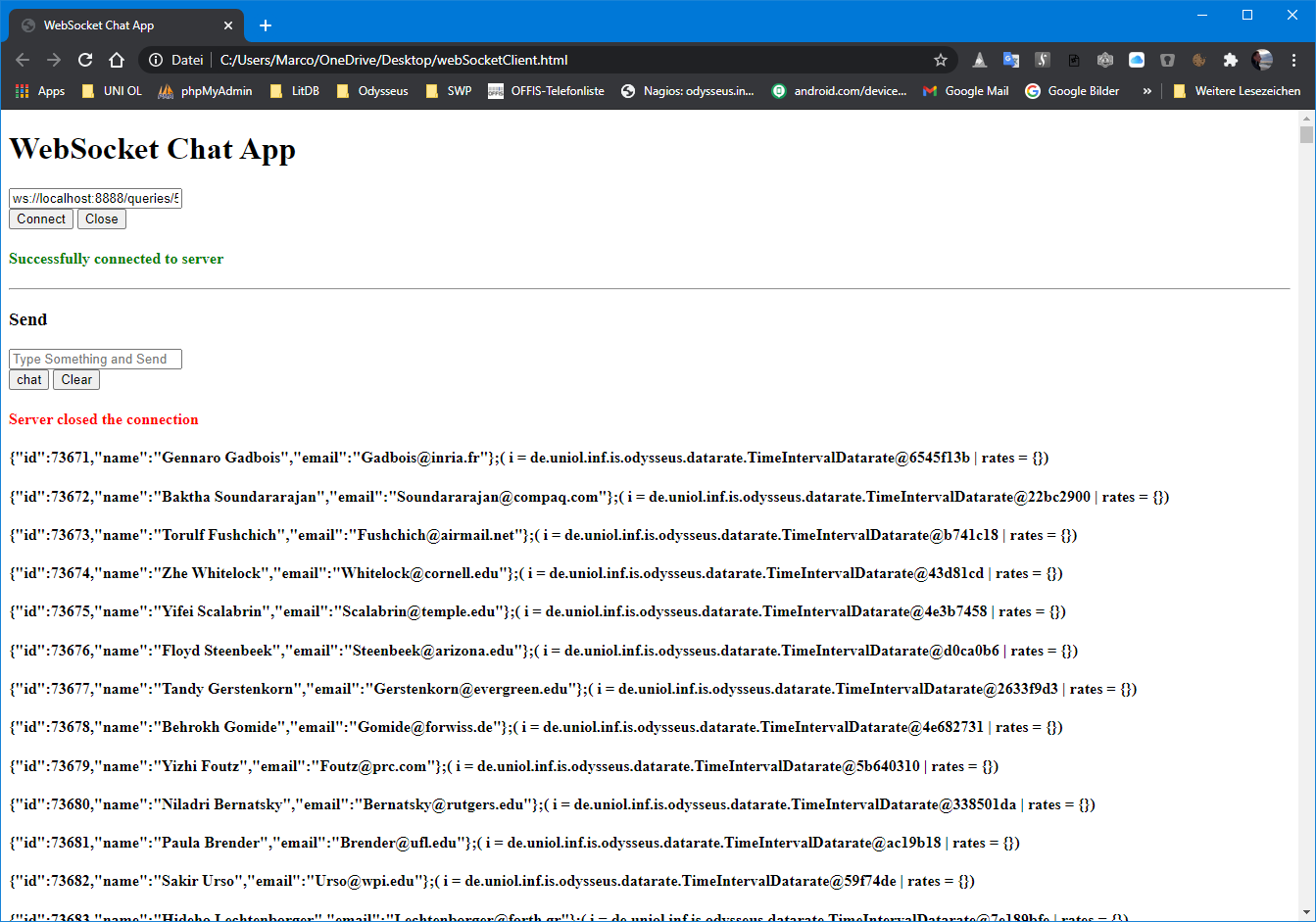

Reading in a Browser

You can access the result e.g. in a browser with java script. (see https://github.com/wso2/msf4j/blob/master/samples/websocket/chatApp/js-client/index.html for an example)


Attention: In JSON the result contains the metadata appended after JSON-Document with an ";" as separator.

Reading in Odysseus

You could also use this output as an input to another odysseus operator as in the following

#PARSER PQL
#RUNQUERY
in = ACCESS({
	transport = 'WebsocketClient',
	wrapper = 'GenericPush',
	datahandler = 'Tuple',
	protocol = 'CSV',
	source = 'access',
	readMetadata = 'true',
	options = [
		['uri','ws://localhost:8888/queries/5/d05c2648-2605-46be-a2e1-a88f5538aad3/0/CSV/ijqi2jrd9m0i170540h0dv0lss']
	],
	schema = [
		['person','id', 'INTEGER'],
		['person','name', 'STRING'],
		['person','mail', 'STRING']
	]
	}
)

The same information can be found for all other operators in the queryOperators section.
